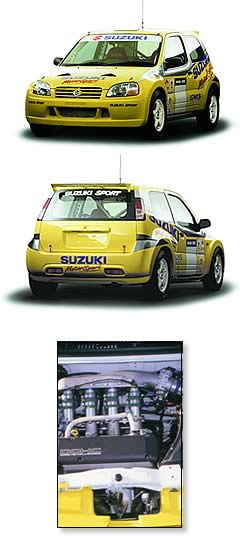

Specification - Suzuki Ignis Super 1600

ENGINE
Type Water-cooled, in-line 4, DOHC, 16-valve
Bore x Stroke 81.0 x 77.5mm
Cylinder capacity 1597cc
Maximum output 153kW(206ps)/8,500rpm
Maximum torque 180Nm(18.4kg-m)/7,250rpm
POWER TRAIN
Transmission Suzuki Sport, 6-speed sequential
Differential FRONT  Mechanical multi plate
Clutch Single plate
SUSPENSION
Type
FRONT
REAR
Strut
3 link rigid
BRAKE
Disc
FRONT

REAR
Brembo, 355mm(tarmac) / 300mm(gravel) diameter
Brembo, 278mm diameter
Caliper
FRONT
REAR
Brembo, 4 pot
Brembo, 2 pot
TIRE&WHEEL
Tire Michelin, 17/63-17"(tarmac)
16/65-16"(gravel)
Wheel 17x7.0J(tarmac)
16x6.0J(gravel)
DIMENSIONS
Overall length 3,550mm
Overall width 1,740mm
Overall height 1,490 - 1,560mm
Wheelbase 2,360mm
Tread
FRONT
REAR
1,530mm
1,489mm
WEIGHT
  950kg (with no crew or fuel)
INTERIOR
Steering Suzuki Sport, 350mm
Seat Bride, Zeta2
Seatbelt Sabelt, Top Formula
