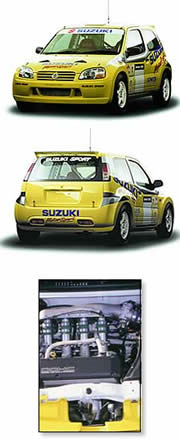

| Specification - Suzuki Ignis Super 1600 |
 |
| ENGINE |
| Type |
Water-cooled, in-line 4, DOHC, 16-valve |
| Bore x Stroke |
81.0 x 77.5mm |
| Cylinder capacity |
1597cc |
| Maximum output |
153kW(206ps)/8,500rpm |
| Maximum torque |
180Nm(18.4kg-m)/7,250rpm |
| POWER TRAIN |
| Transmission |
Suzuki Sport, 6-speed sequential |
| Differential |
FRONT Mechanical multi plate |
| Clutch |
Single plate |
| SUSPENSION |
| Type |
FRONT
REAR |
Strut
3 link rigid |
|
| BRAKE |
| Disc |
FRONT
REAR |
Brembo, 355mm(tarmac) / 300mm(gravel) diameter
Brembo, 278mm diameter |
|
| Caliper |
FRONT
REAR |
Brembo, 4 pot
Brembo, 2 pot |
|
| TIRE&WHEEL |
| Tire |
FRONT
REAR |
Michelin, 17/63-17"(tarmac)
16/65-16"(gravel) |
|
| Wheel |
FRONT
REAR |
17x7.0J(tarmac)
15x6.0J(gravel) |
|
| DIMENSIONS |
| Overall length |
3,550mm |
| Overall width |
1,740mm |
| Overall height |
1,490 - 1,560mm |
| Wheelbase |
2,360mm |
| Tread |
FRONT
REAR |
1,530mm
1,489mm |
|
| WEIGHT |
| |
950kg (with no crew or fuel) |
| INTERIOR |
| Steering |
Suzuki Sport, 350mm |
| Seat |
Bride, Zeta2 |
| Seatbelt |
Sabelt, Top Formula |
|
|
|
|
|
|
